Texas Instruments
TPL0102-100RUCR
TPL0102-100RUCR
Regular price
$2.33 USD
Regular price
Sale price
$2.33 USD
Unit price
per
Couldn't load pickup availability

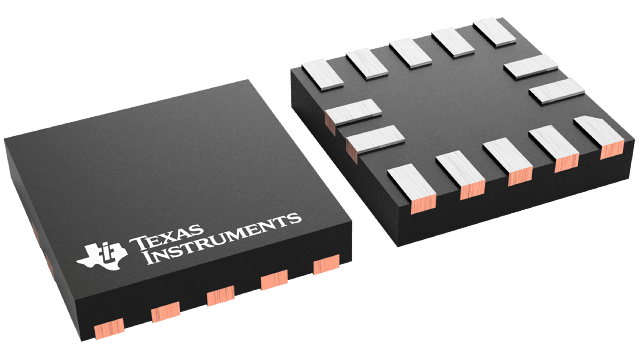

TPL0102-100RUCR Texas Instruments - Yeehing Electronics
256-tap dual-channel digital potentiometer with I2C interface and nonvolatile memory
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.39 |
| 100 — 249 | 1.974 |
| 250 — 999 | 1.418 |
| 1,000 + | 2.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Potentiometer ICs |
| RoHS | Y |
| Series | TPL0102-100 |
| Resistance | 100 kOhms |
| Temperature Coefficient | 92 PPM / C |
| Tolerance | 20 % |
| Number of POTs | Dual |
| Taps per POT | 256 |
| Wiper Memory | Non Volatile |
| Digital Interface | I2C |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Operating Supply Current | +/- 2 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | PCB Mount |
| Package / Case | X2QFN-14 |
| Taper | Linear |
| Packaging | Reel |
| Description/Function | Dual Channel Digital Potentiometer with Non-Volatile Memory |
| Operating Temperature Range | - 40 C to + 85 C |
| Termination Style | SMD/SMT |
| Brand | Texas Instruments |
| Product Type | Digital Potentiometer ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Digital Potentiometer ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.000303 oz |
For more information, please refer to datasheet
Documents
| TPL0102-100RUCR Datasheet |
More Information
The TPL0102 has two linear-taper digital potentiometers (DPOTs) with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-100 has an end-to-end resistance of 100 kΩ.
