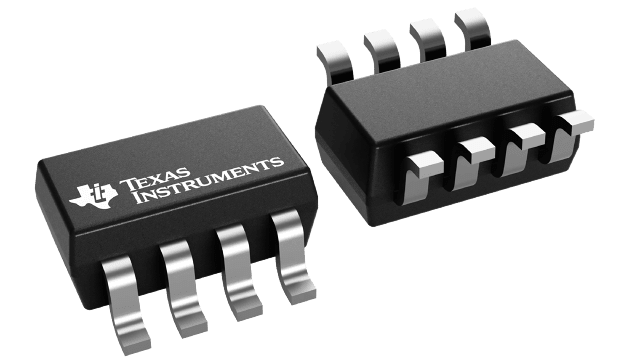

TPL0501-100DCNR Texas Instruments - Yeehing Electronics

256-tap single-channel digital potentiometer (digipot) with SPI

Pricing (USD)

Quantity	Unit Price
1 — 99	1.635
100 — 249	1.351
250 — 999	0.97
1,000 +	0.61

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Potentiometer ICs
RoHS	Y
Series	TPL0501-100
Resistance	100 kOhms
Temperature Coefficient	35 PPM / C
Tolerance	20 %
Number of POTs	Single
Taps per POT	256
Wiper Memory	Non Volatile
Digital Interface	SPI
Operating Supply Voltage	2.7 V to 5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SOT-23-8
Taper	Linear
Packaging	Reel
Description/Function	256 Taps Single Channel Digital Potentiometer With SPI Interface
Operating Temperature Range	- 40 C to + 125 C
Termination Style	SMD/SMT
Brand	Texas Instruments
Product Type	Digital Potentiometer ICs
Factory Pack Quantity	3000
Subcategory	Digital Potentiometer ICs
Supply Voltage - Max	5 V
Supply Voltage - Min	2.7 V
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

TPL0501-100DCNR Datasheet

More Information

The TPL0501 device is a single-channel, linear-taper, digital potentiometer with 256 wiper positions. This device can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0501 is currently offered with end-to-end resistance of 100 kΩ. The internal registers of the TPL0501 can be accessed using a SPI-compatible interface. The TPL0501 has a nominal temperature coefficient of 35 ppm/°C.
