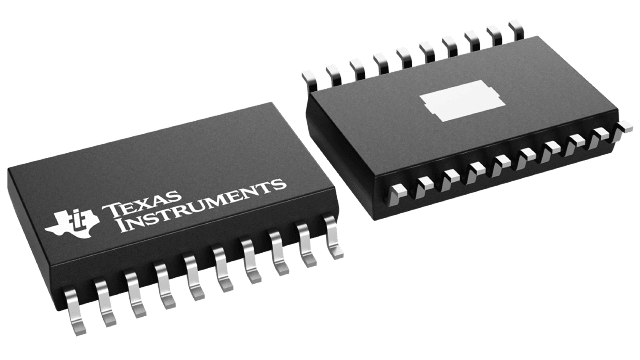

TPPM0110DWPR Texas Instruments - Yeehing Electronics
1.5-A, dual-channel low-dropout voltage regulator for 3.3V and 1.8V
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.048 |
100 — 249 | 3.3 |
250 — 999 | 2.594 |
1,000 + | 1.54 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | HSOP-20 |
Output Voltage | 3.3 V, 1.82 V |
Output Current | 1.5 mA |
Number of Outputs | 2 Output |
Polarity | Positive |
Input Voltage MAX | 5.3 V |
Input Voltage MIN | 4.7 V |
Output Type | Fixed |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Dropout Voltage | 1 V |
Series | TPPM0110 |
Packaging | Reel |
Height | 2.55 mm |
Length | 12.82 mm |
Operating Temperature Range | 0 C to + 70 C |
Width | 7.52 mm |
Brand | Texas Instruments |
Dropout Voltage - Max | 1 V at 1.2 A |
Voltage Regulation Accuracy | 3 % |
Ib - Input Bias Current | 600 uA |
Moisture Sensitive | Yes |
Operating Supply Current | 1 mA |
Pd - Power Dissipation | 3.8 W |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 2000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.017870 oz |
For more information, please refer to datasheet
Documents
TPPM0110DWPR Datasheet |
More Information
The TPPM0110 is a power source intended for use in systems that have a single 5-V input source and require dual, linearly-regulated, low-dropout voltage sources. The outputs must track within 2 V of each other during all conditions and modes of operation. Each output is protected against overcurrent conditions. In the event that one of the outputs is shorted to ground, the other output must maintain a voltage output differential of less than 2 V compared to the output with the abnormal condition.
