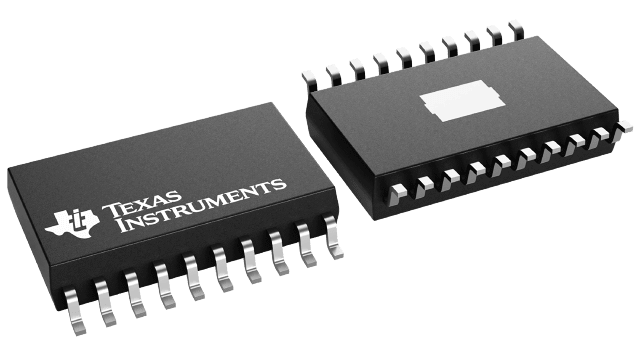

TPPM0111DWP Texas Instruments - Yeehing Electronics

1.5-A, dual-channel low-dropout voltage regulator for 3.3V and 1.5V

Pricing (USD)

Quantity	Unit Price
1 — 99	4.859
100 — 249	3.962
250 — 999	3.114
1,000 +	1.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HSOP-20
Output Voltage	3.33 V, 1.5 V
Output Current	1.5 mA
Number of Outputs	2 Output
Polarity	Positive
Input Voltage MAX	5.3 V
Input Voltage MIN	4.7 V
Output Type	Fixed
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Dropout Voltage	1 V
Series	TPPM0111
Packaging	Tube
Height	2.55 mm
Length	12.82 mm
Operating Temperature Range	0 C to + 70 C
Width	7.52 mm
Brand	Texas Instruments
Dropout Voltage - Max	1 V at 1.2 A
Voltage Regulation Accuracy	3 %
Ib - Input Bias Current	600 uA
Moisture Sensitive	Yes
Operating Supply Current	1 mA
Pd - Power Dissipation	4 W
Product Type	LDO Voltage Regulators
Factory Pack Quantity	25
Subcategory	PMIC - Power Management ICs
Unit Weight	0.017870 oz

For more information, please refer to datasheet

Documents

TPPM0111DWP Datasheet

More Information

The TPPM0111 is a power source intended for use in systems that have a single 5-V input source and require dual, linearly-regulated, low-dropout voltage sources. The outputs must track within 2 V of each other during all conditions and modes of operation. Each output is protected against overcurrent conditions. In the event that one of the outputs is shorted to ground, the other output must maintain a voltage output differential of less than 2 V compared to the output with the abnormal condition.
