Texas Instruments
TPS1H000AQDGNRQ1
TPS1H000AQDGNRQ1
Regular price
$0.28 USD
Regular price
Sale price
$0.28 USD
Unit price
per
Couldn't load pickup availability

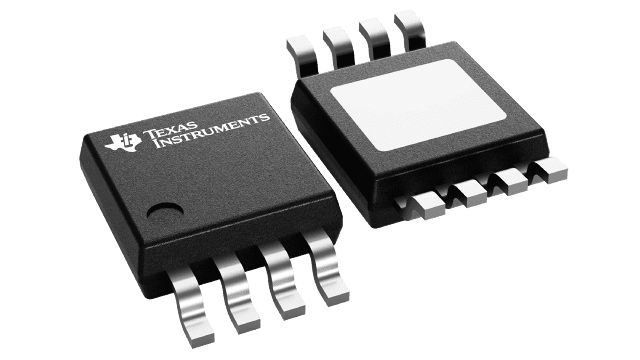

TPS1H000AQDGNRQ1 Texas Instruments - Yeehing Electronics
40-V, 1-Ω, 1-ch automotive smart high-side switch with adjustable current limit
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.99 |
| 100 — 249 | 0.762 |
| 250 — 999 | 0.561 |
| 1,000 + | 0.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Current Limit | 1 A to 1.8 A |
| On Resistance - Max | 2 Ohms |
| Operating Supply Voltage | 3.4 V to 40 V |
| Supply Voltage - Min | 3.4 V |
| Supply Voltage - Max | 40 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-8 |
| On Time - Max | 90 us |
| Off Time - Max | 90 us |
| Series | TPS1H000-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Product | Power Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 2500 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000924 oz |
For more information, please refer to datasheet
Documents
| TPS1H000AQDGNRQ1 Datasheet |
More Information
The TPS1H000-Q1 device is a fully protected single-channel high-side power switch with an integrated 1000-mΩ NMOS power FET.
