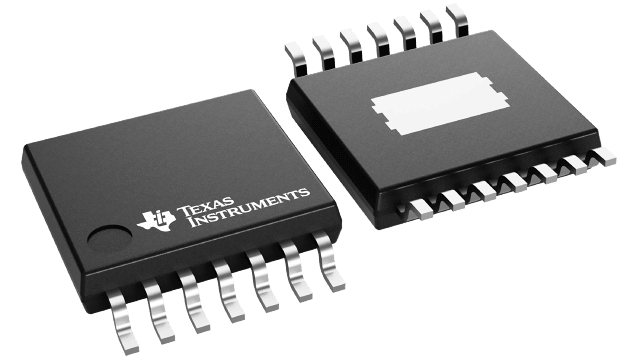

TPS1H100AQPWPRQ1 Texas Instruments - Yeehing Electronics

40-V, 100-mΩ, 1-ch automotive smart high-side switch with adjustable current limit

Pricing (USD)

Quantity	Unit Price
1 — 99	1.205
100 — 249	0.995
250 — 999	0.715
1,000 +	0.43

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	4 A
Current Limit	10 A
On Resistance - Max	100 mOhms
Operating Supply Voltage	5 V to 40 V
Supply Voltage - Min	5 V
Supply Voltage - Max	40 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-14
On Time - Max	50 us
Off Time - Max	50 us
Series	TPS1H100-Q1
Qualification	AEC-Q100
Packaging	Reel
Product	Power Switches
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	2000
Subcategory	Switch ICs
Unit Weight	0.002046 oz

For more information, please refer to datasheet

Documents

TPS1H100AQPWPRQ1 Datasheet

More Information

The TPS1H100-Q1 device is a fully protected high-side power switch, with integrated NMOS power FET and charge pump, targeted for the intelligent control of the variable kinds of resistive, inductive, and capacitive loads. Accurate current sense and programmable current limit features differentiate it from the market.
