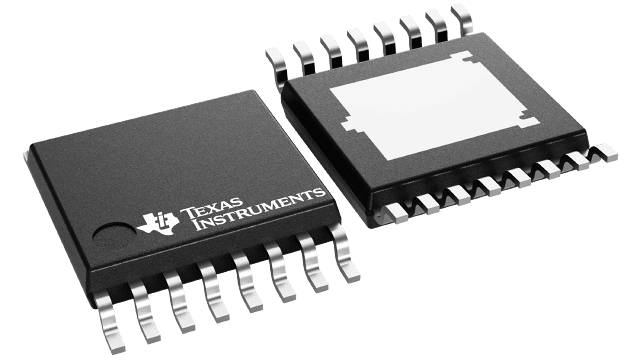

TPS1HA08BQPWPRQ1


YeeHing #: Y012-TPS1HA08BQPWPRQ1
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS1HA08BQPWPRQ1 Texas Instruments - Yeehing Electronics

40-V, 8-mΩ, 1-ch automotive smart high-side switch with selectable current Limit

Pricing (USD)

Quantity Unit Price
1 — 99 2.737
100 — 249 2.398
250 — 999 1.682
1,000 + 2.06

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Switch ICs - Power Distribution
RoHS Y
Type High Side Switch
Number of Outputs 1 Output
Output Current 10 A
Current Limit 80 A
On Resistance - Max 15 mOhms
Operating Supply Voltage 8 V to 18 V
Supply Voltage - Min 8 V
Supply Voltage - Max 18 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case HTSSOP-16
On Time - Max 145 us
Off Time - Max 145 us
Series TPS1HA08-Q1
Packaging Reel
Product Power Switch ICs - Power Distribution
Brand Texas Instruments
Development Kit HSS-MOTHERBOARDEVM
Product Type Power Switch ICs - Power Distribution
Factory Pack Quantity 2000
Subcategory Switch ICs

For more information, please refer to datasheet

Documents

TPS1HA08BQPWPRQ1 Datasheet

More Information

The device is a single-channel smart high-side switch intended for use with 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits. The device protects against faults through a reliable current limit, which, depending on device variant, is available at both 80 A and 20 A and can be configured to react to an overcurrent event by either instantly turning the switch off or by regulating the output current at the set point. The high current limit option allows for usage in loads that require large transient currents, while the low current limit option provides improved protection for loads that do not require high peak current.
