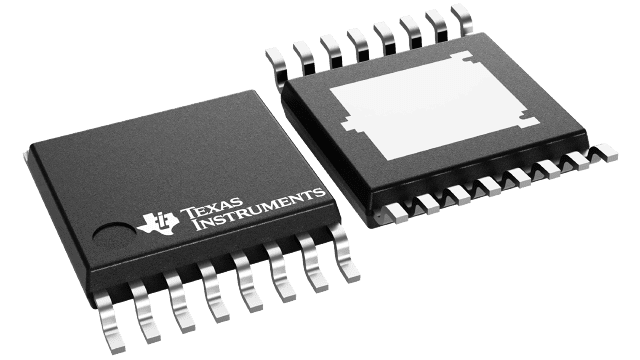

TPS1HB08FQPWPRQ1 Texas Instruments - Yeehing Electronics
40-V, 8-mΩ, 1-ch automotive smart high-side switch with adjustable current limit
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.879 |
| 100 — 249 | 1.552 |
| 250 — 999 | 1.115 |
| 1,000 + | 0.59 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS1HB08FQPWPRQ1 Datasheet |
More Information
The TPS1HB08-Q1 device is a smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through a reliable current limit, which, depending on device variant, is adjustable from 6.4 A to 70 A or set at 94 A. The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving a wide range of load profiles.
