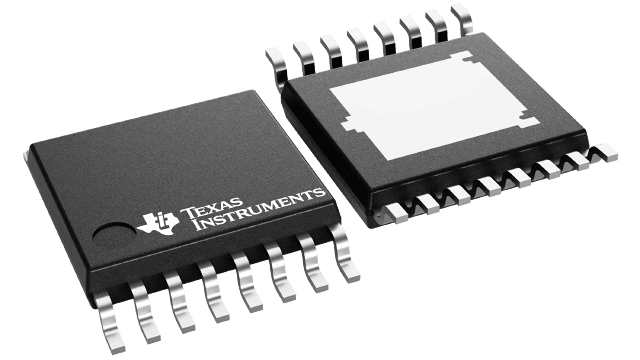

TPS1HB35CQPWPRQ1


YeeHing #: Y012-TPS1HB35CQPWPRQ1
Inventory: 6200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS1HB35CQPWPRQ1 Texas Instruments - Yeehing Electronics

40-V, 35-mΩ, 1-ch automotive smart high-side switch with adjustable current limit

Pricing (USD)

Quantity Unit Price
1 — 99 1.342
100 — 249 1.108
250 — 999 0.796
1,000 + 0.42

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS1HB35CQPWPRQ1 Datasheet

More Information

The TPS1HB35-Q1 device is a smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through a reliable current limit, which, depending on device variant, is adjustable from 2 A to 22 A . The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving a wide range of load profiles.
