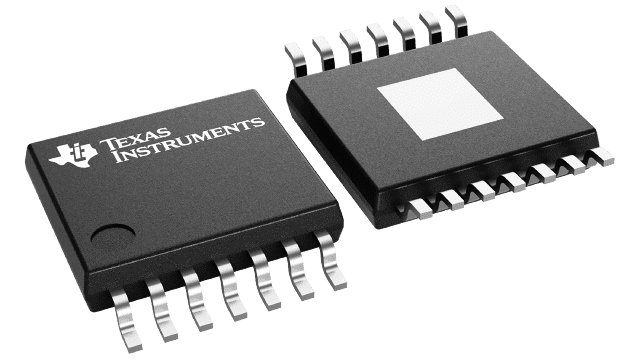

TPS2011APWP Texas Instruments - Yeehing Electronics

5.5-V, 0.6-A, 35-mΩ, load switch

Pricing (USD)

Quantity	Unit Price
1 — 99	1.61
100 — 249	1.411
250 — 999	0.989
1,000 +	0.56

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Number of Outputs	1 Output
Output Current	600 mA
Current Limit	1.2 A
On Resistance - Max	30 mOhms
Operating Supply Voltage	2.7 V to 5.5 V
Supply Voltage - Min	2.7 V
Supply Voltage - Max	5.5 V
Pd - Power Dissipation	900 mW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-14
On Time - Max	20 ms
Off Time - Max	40 ms
Series	TPS2011A
Packaging	Tube
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	90
Subcategory	Switch ICs
Unit Weight	0.002046 oz

For more information, please refer to datasheet

Documents

TPS2011APWP Datasheet

More Information

The TPS201xA family of power distribution switches is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices are 50-m N-channel MOSFET high-side power switches. The switch is controlled by a logic enable compatible with 5-V logic and 3-V logic. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.
