TPS2060CDGNR Texas Instruments - Yeehing Electronics

2-ch, 1.5A loading, 4.5-5.5V, 70mΩ USB power switch, active-low, output discharge, reverse blocking

Pricing (USD)

Quantity	Unit Price
1 — 99	0.847
100 — 249	0.699
250 — 999	0.502
1,000 +	0.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	2 Output
Output Current	1.5 A
On Resistance - Max	70 mOhms
Operating Supply Voltage	4.5 V to 5.5 V
Supply Voltage - Min	4.5 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

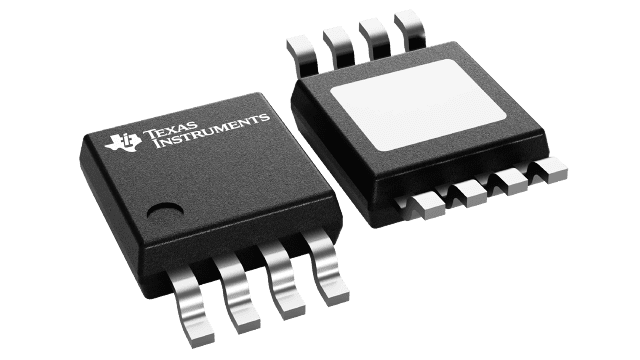

Package / Case	MSOP-PowerPad-8
Series	TPS2060C
Packaging	Reel
Product	USB Power Switches
Brand	Texas Instruments
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	2500
Subcategory	Switch ICs
Unit Weight	0.000861 oz

For more information, please refer to datasheet

Documents

TPS2060CDGNR Datasheet

More Information

The TPS20xxC and TPS20xxC-2 dual power-distribution switch family is intended for applications such as USB where heavy capacitive loads and short-circuits may be encountered. This family offers multiple devices with fixed current-limit thresholds for applications between 0.5 A and 2 A.
