Texas Instruments

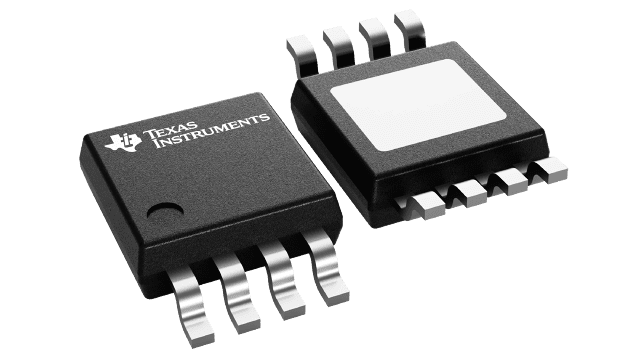

TPS2064CDGN-2
TPS2064CDGN-2
Regular price
$1.03 USD
Regular price
Sale price
$1.03 USD
Unit price
per
Couldn't load pickup availability
TPS2064CDGN-2 Texas Instruments - Yeehing Electronics
2-ch, 1.5A loading, 4.5-5.5V, 70mΩ USB power switch, active-high, reverse blocking
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.972 |
| 100 — 249 | 0.803 |
| 250 — 999 | 0.577 |
| 1,000 + | 1.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 2 Output |
| Output Current | 1.5 A |
| On Resistance - Max | 70 mOhms |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-8 |
| Series | TPS2064C-2 |
| Packaging | Tube |
| Product | USB Power Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 80 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000861 oz |
For more information, please refer to datasheet
Documents
| TPS2064CDGN-2 Datasheet |
More Information
The TPS20xxC and TPS20xxC-2 dual power-distribution switch family is intended for applications such as USB where heavy capacitive loads and short-circuits may be encountered. This family offers multiple devices with fixed current-limit thresholds for applications between 0.5 A and 2 A.
