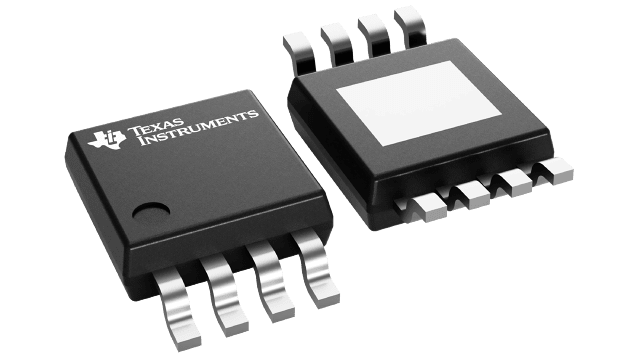

TPS2065DGNR Texas Instruments - Yeehing Electronics

1A loading, 2.7-5.5V, 70mΩ USB power switch, active-high

Pricing (USD)

Quantity	Unit Price
1 — 99	1.174
100 — 249	0.969
250 — 999	0.696
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	1 A
Current Limit	1.5 A
On Resistance - Max	70 mOhms
Operating Supply Voltage	2.7 V to 5.5 V
Supply Voltage - Min	2.7 V
Supply Voltage - Max	5.5 V
Pd - Power Dissipation	1712.3 mW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	MSOP-PowerPad-8
On Time - Max	3 ms
Off Time - Max	10 ms
Series	TPS2065
Packaging	Reel
Product	USB Power Switches
Brand	Texas Instruments
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	2500
Subcategory	Switch ICs
Unit Weight	0.000861 oz

For more information, please refer to datasheet

Documents

TPS2065DGNR Datasheet

More Information

The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70-m N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.
