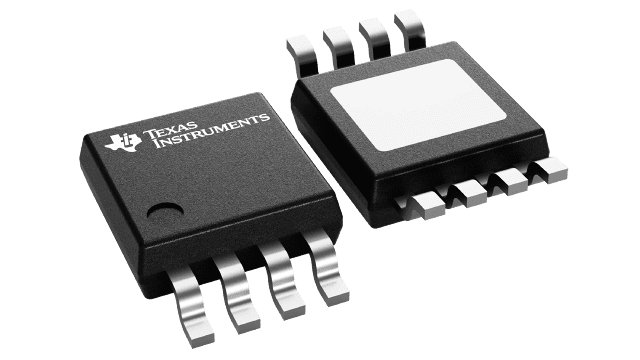

TPS2068CDGN Texas Instruments - Yeehing Electronics

1.5A loading, 4.5-5.5V, 69mΩ USB power switch, active-low, output discharge, reverse blocking

Pricing (USD)

Quantity	Unit Price
1 — 99	0.71
100 — 249	0.586
250 — 999	0.421
1,000 +	0.22

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	1.5 A
Current Limit	2.5 A
On Resistance - Max	70 mOhms
Operating Supply Voltage	4.5 V to 5.5 V
Supply Voltage - Min	4.5 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	MSOP-PowerPad-8
On Time - Max	2.2 ms
Off Time - Max	2.5 ms
Series	TPS2068C
Packaging	Reel
Product	USB Power Switches
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	2500
Subcategory	Switch ICs
Unit Weight	0.000861 oz

For more information, please refer to datasheet

Documents

TPS2068CDGN Datasheet

More Information

The TPS20xxC and TPS20xxC-2 power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers multiple devices with fixed current-limit thresholds for applications from 0.5 A to 2 A.
