Texas Instruments

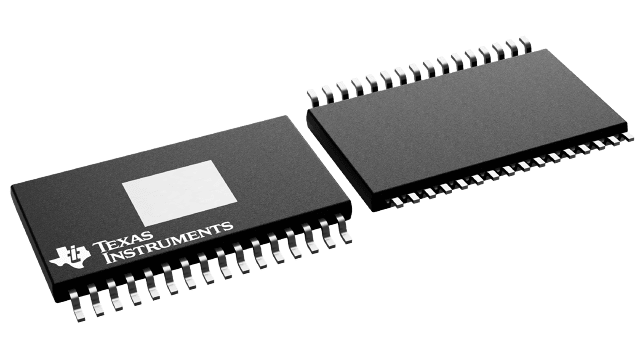

TPS2071DAP
TPS2071DAP
Regular price
$2.25 USD
Regular price
Sale price
$2.25 USD
Unit price
per
Couldn't load pickup availability
TPS2071DAP Texas Instruments - Yeehing Electronics
Pwr controller for Bus/Self Pwrd Hub w/ 5V LDO Control, 3.3V LDO, 8 pwr switches Act-Hi BPMode ind
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.181 |
| 100 — 249 | 4.224 |
| 250 — 999 | 3.32 |
| 1,000 + | 2.25 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| On Resistance - Max | 560 mOhms |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-32 |
| Series | TPS2071 |
| Packaging | Tube |
| Product | USB Power Switches |
| Brand | Texas Instruments |
| Development Kit | TPS2071EVM-159 |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 46 |
| Subcategory | Switch ICs |
| Unit Weight | 0.006388 oz |
For more information, please refer to datasheet
Documents
| TPS2071DAP Datasheet |
More Information
The TPS2070 and TPS2071 provide a complete USB hub power solution by incorporating four major functions: current-limited power switches for four ports, a 3.3-V 100-mA regulator, a 5-V regulator controller for self-power, and a DP0 line control to signal attach/detach of the hub.
