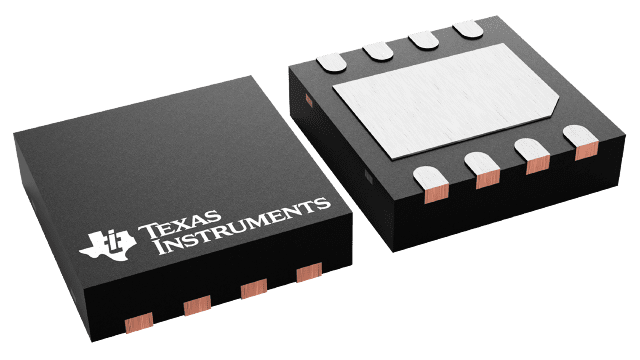

TPS2113ADRBR Texas Instruments - Yeehing Electronics

2.8-V to 5.5-V, 84-mΩ, 1.25-A, power mux with automatic switchover and status output

Pricing (USD)

Quantity	Unit Price
1 — 99	1.478
100 — 249	1.221
250 — 999	0.877
1,000 +	0.46

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	2 A
Current Limit	Adjustable
On Resistance - Max	84 mOhms
Operating Supply Voltage	2.8 V to 5.5 V
Supply Voltage - Min	2.8 V
Supply Voltage - Max	5.5 V
Pd - Power Dissipation	2.5 mW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	SON-8
On Time - Max	1 ms
Off Time - Max	5 ms
Series	TPS2113A
Packaging	Reel
Product	Power Multiplexers
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000847 oz

For more information, please refer to datasheet

Documents

TPS2113ADRBR Datasheet

More Information

The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.
