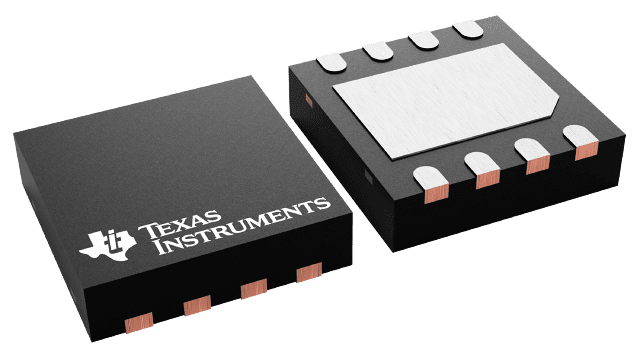

TPS2115ADRBR Texas Instruments - Yeehing Electronics

2.8-V to 5.5-V, 84-mΩ, 1.25-A, power mux with manual, automatic switchover and status outpu

Pricing (USD)

Quantity	Unit Price
1 — 99	1.615
100 — 249	1.334
250 — 999	0.958
1,000 +	0.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	1.25 A
Current Limit	2 A
On Resistance - Max	150 mOhms
Operating Supply Voltage	2.8 V to 5.5 V
Supply Voltage - Min	2.8 V
Supply Voltage - Max	5.5 V
Pd - Power Dissipation	2.5 W
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	SON-8
On Time - Max	1 ms
Off Time - Max	5 ms
Series	TPS2115A
Packaging	Reel
Product	Power Multiplexers
Brand	Texas Instruments
Development Kit	TPS2115AEVM-061
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000847 oz

For more information, please refer to datasheet

Documents

TPS2115ADRBR Datasheet

More Information

The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.
