Texas Instruments
TPS2205IDAPR
TPS2205IDAPR
Regular price
$1.88 USD
Regular price
Sale price
$1.88 USD
Unit price
per
Couldn't load pickup availability

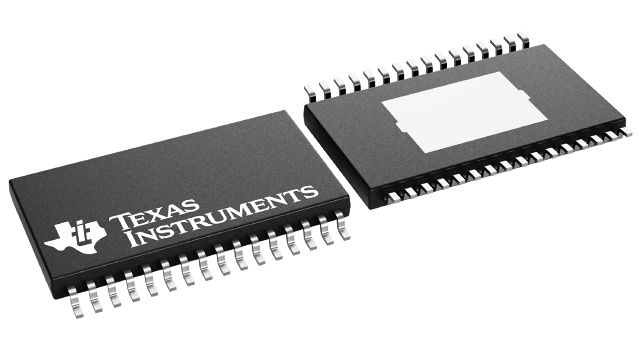

TPS2205IDAPR Texas Instruments - Yeehing Electronics
1A Dual-Slot PC Card Power Switch w/ Parallel Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.939 |
| 100 — 249 | 4.026 |
| 250 — 999 | 3.164 |
| 1,000 + | 1.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switch ICs - Various |
| RoHS | Y |
| Product | PCMCIA Switches |
| On Resistance - Max | 110 mOhms |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-32 |
| Packaging | Reel |
| Series | TPS2205 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Switch ICs - Various |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.006388 oz |
For more information, please refer to datasheet
Documents
| TPS2205IDAPR Datasheet |
More Information
The TPS2205 PC Card power-interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit (IC), using the Texas Instruments LinBiCMOS process. The circuit allows the distribution of 3.3-V, 5-V, and/or 12-V card power, and is compatible with many PCMCIA controllers. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability.
