Texas Instruments
TPS2206ADB
TPS2206ADB
Regular price
$1.55 USD
Regular price
Sale price
$1.55 USD
Unit price
per
Couldn't load pickup availability

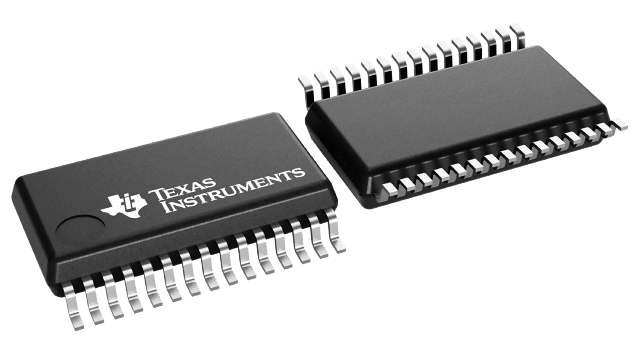

TPS2206ADB Texas Instruments - Yeehing Electronics
1A Dual-Slot PC Card Power-Interface Switch with Reset for Serial PCMCIA Controllers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.081 |
| 100 — 249 | 3.327 |
| 250 — 999 | 2.615 |
| 1,000 + | 1.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switch ICs - Various |
| RoHS | Y |
| Product | PCMCIA Switches |
| On Resistance - Max | 85 mOhms |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SSOP-30 |
| Packaging | Tube |
| Series | TPS2206A |
| Brand | Texas Instruments |
| Product Type | Switch ICs - Various |
| Factory Pack Quantity | 50 |
| Subcategory | Switch ICs |
| Unit Weight | 0.007676 oz |
For more information, please refer to datasheet
Documents
| TPS2206ADB Datasheet |
More Information
The TPS2204A and TPS2206A PC CardBus power-interface switches provide an integrated power-management solution for two PC Card sockets. The TPS2210A is a single-slot option for this family of devices. These devices allow the controlled distribution of 3.3 V, 5 V, and 12 V to each card slot. The current-limiting and thermal-protection features eliminate the need for fuses. Current-limit reporting helps the user isolate a system fault. The switch rDS(on) and current-limit values are set for the peak and average current requirements stated in the PC Card specification, and are optimized for cost.
