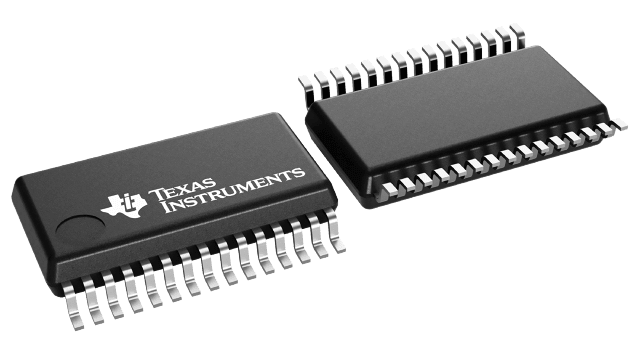

TPS2206IDBR Texas Instruments - Yeehing Electronics
1A Dual-slot PC card power switch w/ serial interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.061 |
| 100 — 249 | 4.941 |
| 250 — 999 | 3.884 |
| 1,000 + | 1.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 2,000 |
| Package | Pins | SSOP (DB) | 30 |
For more information, please refer to datasheet
Documents
| TPS2206IDBR Datasheet |
More Information
The TPS2206 PC Card power-interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit (IC), using the Texas Instruments LinBiCMOS process. The circuit allows the distribution of 3.3-V, 5-V, and/or 12-V card power by means of the P2C (PCMCIA Peripheral-Control) Texas Instruments nonproprietary serial interface. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability.
