Texas Instruments
TPS2216DB
TPS2216DB
Regular price
$3.39 USD
Regular price
Sale price
$3.39 USD
Unit price
per
Couldn't load pickup availability

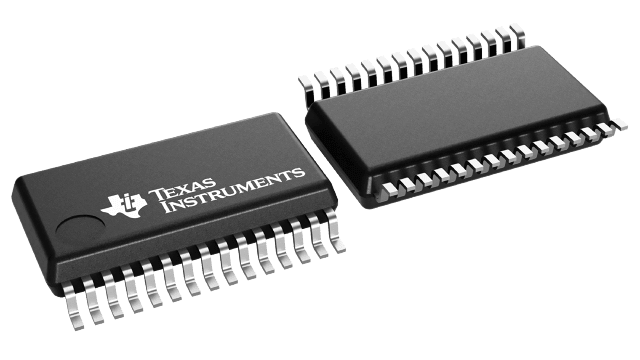

TPS2216DB Texas Instruments - Yeehing Electronics
1A Dual-Slot PC Card Power Switch w/ Serial Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.798 |
| 100 — 249 | 6.357 |
| 250 — 999 | 4.997 |
| 1,000 + | 3.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switch ICs - Various |
| RoHS | Y |
| On Resistance - Max | 60 mOhms |
| Operating Supply Voltage | 3.3 V, 5 V, 12 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SSOP-30 |
| Packaging | Tube |
| Series | TPS2216 |
| Brand | Texas Instruments |
| Product Type | Switch ICs - Various |
| Factory Pack Quantity | 50 |
| Subcategory | Switch ICs |
| Unit Weight | 0.007676 oz |
For more information, please refer to datasheet
Documents
| TPS2216DB Datasheet |
More Information
The TPS2216 PC Card power-interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit. This device allows the distribution of 3.3-V, 5-V, and/or 12-V power to the card. The current-limiting feature eliminates the need for fuses. Current-limit reporting can help the user isolate a system fault.
