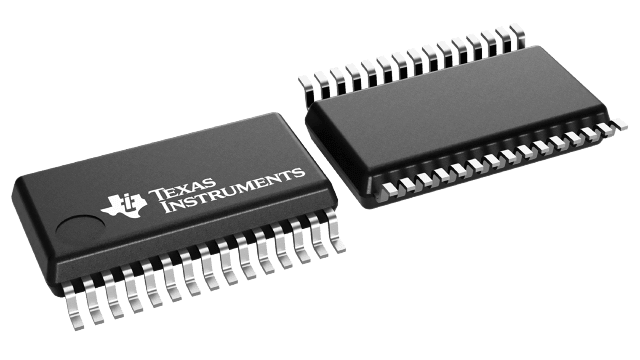

TPS2226ADBR Texas Instruments - Yeehing Electronics

Dual-Slot Cardbus Power-Interface Switches for Serial PCMCIA Controllers

Pricing (USD)

Quantity	Unit Price
1 — 99	4.293
100 — 249	3.761
250 — 999	2.637
1,000 +	1.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switch ICs - Various
RoHS	Y
Product	PCMCIA Switches
On Resistance - Max	85 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	SSOP-30
Packaging	Reel
Series	TPS2226A
Brand	Texas Instruments
Product Type	Switch ICs - Various
Factory Pack Quantity	2000
Subcategory	Switch ICs
Unit Weight	0.007676 oz

For more information, please refer to datasheet

Documents

TPS2226ADBR Datasheet

More Information

The TPS2223A, TPS2224A, and TPS2226A CardBus™ power-interface switches provide an integrated power-management solution for two PC Card sockets. The TPS2220A is a single-slot option for this family of devices. These devices allow the controlled distribution of 3.3 V, 5 V, and 12 V to each card slot. The current-limiting and thermal-protection features eliminate the need for fuses. Current-limit reporting helps the user isolate a system fault. The switch rDS(on) and current-limit values have been set for the peak and average current requirements stated in the PC Card specification, and optimized for cost. A faster maximum current limit response time is the only difference between the TPS2223A, TPS2224A, and TPS2226A and the TPS2223, TPS2224, and TPS2226.
