Texas Instruments
TPS2226DBR
TPS2226DBR
Regular price
$1.64 USD
Regular price
Sale price
$1.64 USD
Unit price
per
Couldn't load pickup availability

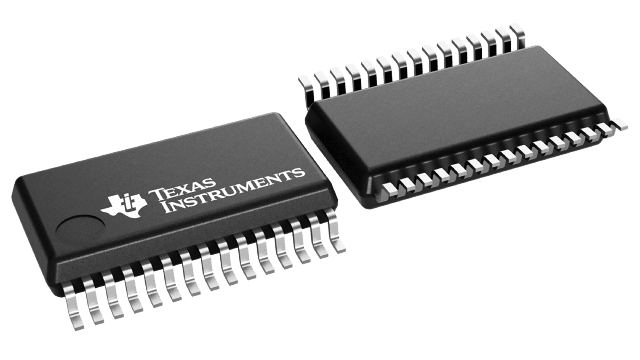

TPS2226DBR Texas Instruments - Yeehing Electronics
1A Dual-Slot PC Card Power Switch w/Serial Interface, 30-Pin Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.723 |
| 100 — 249 | 4.138 |
| 250 — 999 | 2.901 |
| 1,000 + | 1.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switch ICs - Various |
| RoHS | Y |
| Product | PCMCIA Switches |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | SSOP-30 |
| Packaging | Reel |
| Series | TPS2226 |
| Brand | Texas Instruments |
| Product Type | Switch ICs - Various |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.007676 oz |
For more information, please refer to datasheet
Documents
| TPS2226DBR Datasheet |
More Information
The TPS2223, TPS2224 and TPS2226 Card-Bus power-interface switches provide an integrated power-management solution for two PC Card sockets. These devices allow the controlled distribution of 3.3 V, 5 V, and 12 V to each card slot. The current-limiting and thermal-protection features eliminate the need for fuses. Current-limit reporting helps the user isolate a system fault. The switch rDS(on) and current-limit values have been set for the peak and average current requirements stated in the PC Card specification, and optimized for cost.
