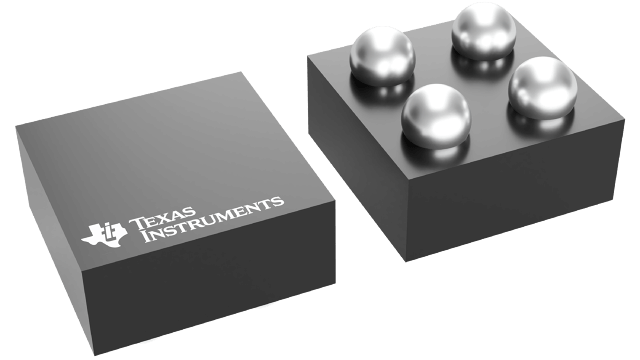

TPS22901YFPR Texas Instruments - Yeehing Electronics
3.6-V, 0.5-A, 78-mΩ, 22-nA leakage load switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.45 |
| 100 — 249 | 0.346 |
| 250 — 999 | 0.255 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Output Current | 500 mA |
| Current Limit | 500 mA |
| On Resistance - Max | 95 mOhms |
| Operating Supply Voltage | 1 V to 3.6 V |
| Supply Voltage - Min | 1 V |
| Supply Voltage - Max | 3.6 V |
| Pd - Power Dissipation | 480 mW |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| On Time - Max | 33 us |
| Off Time - Max | 39 us |
| Series | TPS22901 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Development Kit | TPS22901EVM |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
For more information, please refer to datasheet
Documents
| TPS22901YFPR Datasheet |
More Information
The TPS22901, TPS22902, and TPS22902B are small, low ON-resistance (rON) load switches with a controlled turnon. These devices contain a P-channel MOSFET that operates over an input voltage range of 1.0 V to 3.6 V. The switch is controlled by an on/off input (ON), which can interface directly with low-voltage control signals. In the TPS22902 and TPS22902B, an 88-Ω on-chip load resistor is added for output quick discharge when the switch is turned off.
