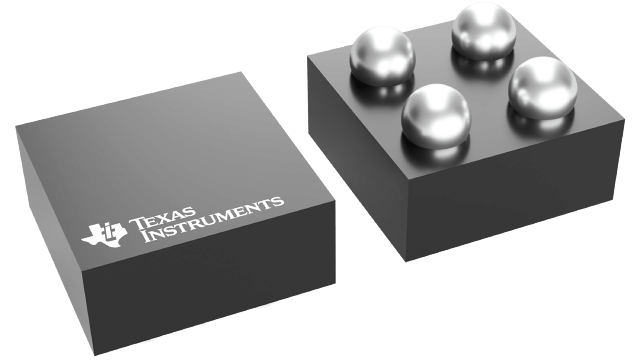

TPS22902BYFPR Texas Instruments - Yeehing Electronics

3.6-V, 0.5-A, 78-mΩ, 22-nA leakage load switch with output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.45
100 — 249	0.346
250 — 999	0.255
1,000 +	0.13

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Number of Outputs	1 Output
Output Current	500 mA
Current Limit	500 mA
On Resistance - Max	95 mOhms
Operating Supply Voltage	1 V to 3.6 V
Supply Voltage - Min	1 V
Supply Voltage - Max	3.6 V
Pd - Power Dissipation	480 mW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-4
On Time - Max	33 us
Off Time - Max	7 us
Series	TPS22902B
Packaging	Reel
Brand	Texas Instruments
Development Kit	TPS22902BEVM
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000025 oz

For more information, please refer to datasheet

Documents

TPS22902BYFPR Datasheet

More Information

The TPS22901, TPS22902, and TPS22902B are small, low ON-resistance (rON) load switches with a controlled turnon. These devices contain a P-channel MOSFET that operates over an input voltage range of 1.0 V to 3.6 V. The switch is controlled by an on/off input (ON), which can interface directly with low-voltage control signals. In the TPS22902 and TPS22902B, an 88-Ω on-chip load resistor is added for output quick discharge when the switch is turned off.
