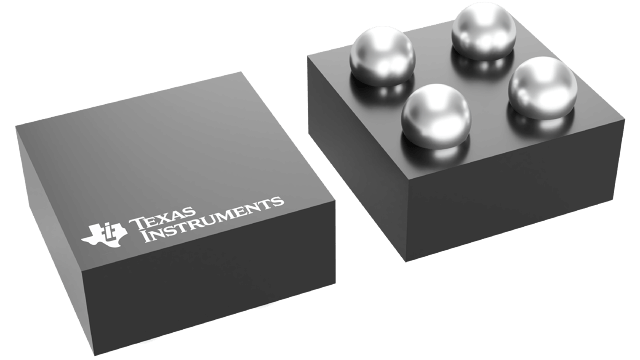

TPS22904YFPR Texas Instruments - Yeehing Electronics
3.6-V, 0.5-A, 66-mΩ load switch with output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.573 |
| 100 — 249 | 0.441 |
| 250 — 999 | 0.325 |
| 1,000 + | 0.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Output Current | 500 mA |
| Current Limit | 500 mA |
| On Resistance - Max | 90 mOhms |
| Operating Supply Voltage | 1.1 V to 3.6 V |
| Supply Voltage - Min | 1.1 V |
| Supply Voltage - Max | 3.6 V |
| Pd - Power Dissipation | 480 mW |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| On Time - Max | 1.5 us |
| Off Time - Max | 7 us |
| Series | TPS22904 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000021 oz |
For more information, please refer to datasheet
Documents
| TPS22904YFPR Datasheet |
More Information
The TPS22903 and TPS22904 are ultra-small, low rON single channel load switches with controlled turnon. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.1 V to 3.6 V. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In TPS22904, a 85-Ω on-chip load resistor is added for output quick discharge when switch is turned off.
