TPS22913BYZVT Texas Instruments - Yeehing Electronics

5.5-V, 2-A, 60-mΩ load switch with output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.62
100 — 249	0.477
250 — 999	0.351
1,000 +	0.18

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Current Limit	2 A
On Resistance - Max	61 mOhms
Operating Supply Voltage	1.4 V to 5.5 V
Supply Voltage - Min	1.4 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

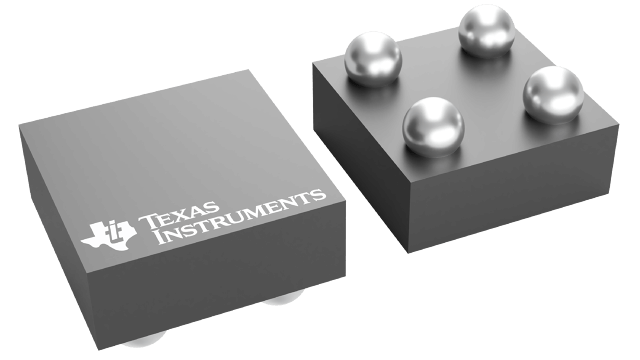

Package / Case	DSBGA-4
On Time - Max	234 us
Off Time - Max	17 us
Series	TPS22913B
Packaging	Reel
Product	Load Switches
Brand	Texas Instruments
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	250
Subcategory	Switch ICs
Unit Weight	0.000035 oz

For more information, please refer to datasheet

Documents

TPS22913BYZVT Datasheet

More Information

The TPS22910A, TPS22912C, and TPS22913B/C are small, low rON load switches with controlled turn on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 V to 5.5 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage GPIO control signals.
