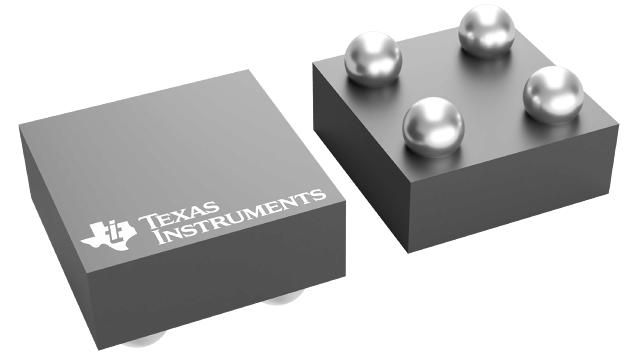

TPS22913CYZVT


YeeHing #: Y012-TPS22913CYZVT
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS22913CYZVT Texas Instruments - Yeehing Electronics

5.5-V, 2-A, 60-mΩ load switch with output discharge

Pricing (USD)

Quantity Unit Price
1 — 99 0.62
100 — 249 0.477
250 — 999 0.351
1,000 + 0.14

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Switch ICs - Power Distribution
RoHS Y
Type High Side
Number of Outputs 1 Output
Output Current 2 A
Current Limit 2 A
On Resistance - Max 61 mOhms
Operating Supply Voltage 1.4 V to 5.5 V
Supply Voltage - Min 1.4 V
Supply Voltage - Max 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case DSBGA-4
On Time - Max 770 us
Off Time - Max 6.6 us
Series TPS22913C
Packaging Reel
Product Load Switches
Brand Texas Instruments
Product Type Power Switch ICs - Power Distribution
Factory Pack Quantity 250
Subcategory Switch ICs
Unit Weight 0.000028 oz

For more information, please refer to datasheet

Documents

TPS22913CYZVT Datasheet

More Information

The TPS22910A, TPS22912C, and TPS22913B/C are small, low rON load switches with controlled turn on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 V to 5.5 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage GPIO control signals.
