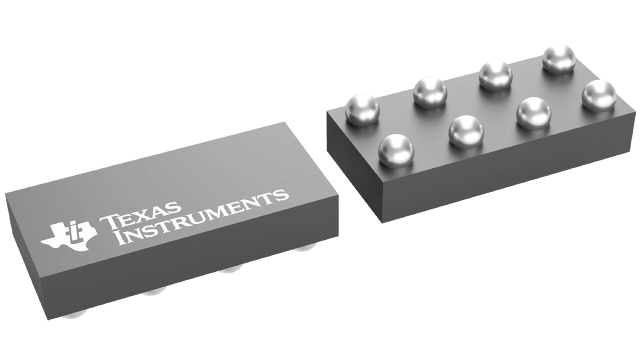

TPS22920LYZPR Texas Instruments - Yeehing Electronics

3.6-V, 4-A, 5.3-mΩ load switch with output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.874
100 — 249	0.673
250 — 999	0.495
1,000 +	0.21

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	4 A
Current Limit	4 A
On Resistance - Max	5.3 mOhms
Operating Supply Voltage	3.6 V
Supply Voltage - Min	750 mV
Supply Voltage - Max	3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-8
On Time - Max	663 us
Off Time - Max	2 us
Series	TPS22920L
Packaging	Reel
Product	Load Switches
Brand	Texas Instruments
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000056 oz

For more information, please refer to datasheet

Documents

TPS22920LYZPR Datasheet

More Information

The TPS22920x is a small, space-saving load switch with controlled turn on to reduce inrush current. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V and switch currents up to 4 A. An integrated charge pump biases the NMOS switch in order to achieve a minimum switch ON resistance (rON). The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
