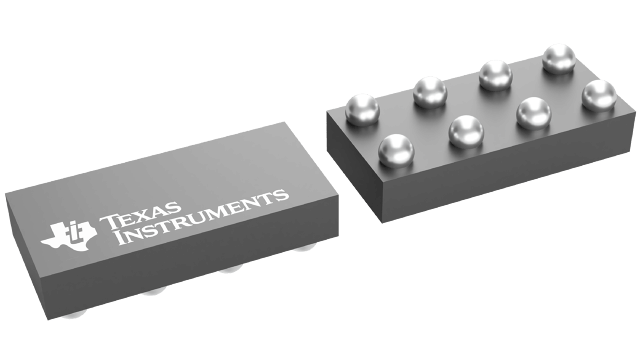

TPS22920YZPRB Texas Instruments - Yeehing Electronics
3.6-V, 4-A, 5.3-mΩ load switch with output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.874 |
| 100 — 249 | 0.673 |
| 250 — 999 | 0.495 |
| 1,000 + | 0.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Output Current | 4 A |
| Current Limit | 4 A |
| On Resistance - Max | 5.3 mOhms |
| Operating Supply Voltage | 3.6 V |
| Supply Voltage - Min | 750 mV |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| On Time - Max | 970 us |
| Off Time - Max | 3 us |
| Series | TPS22920 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| TPS22920YZPRB Datasheet |
More Information
The TPS22920x is a small, space-saving load switch with controlled turn on to reduce inrush current. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V and switch currents up to 4 A. An integrated charge pump biases the NMOS switch in order to achieve a minimum switch ON resistance (rON). The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
