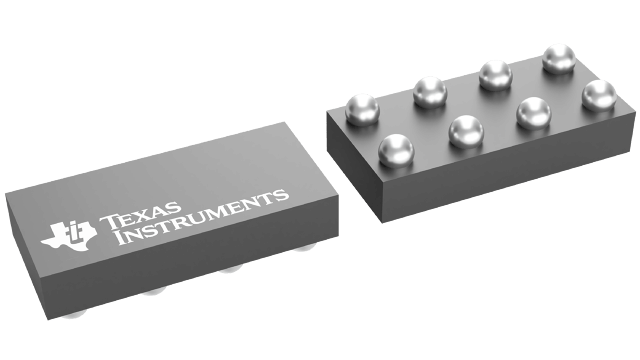

TPS22920YZPT Texas Instruments - Yeehing Electronics
3.6-V, 4-A, 5.3-mΩ load switch with output discharge
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.05 |
100 — 249 | 0.808 |
250 — 999 | 0.595 |
1,000 + | 0.30 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TPS22920YZPT Datasheet |
More Information
The TPS22920x is a small, space-saving load switch with controlled turn on to reduce inrush current. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V and switch currents up to 4 A. An integrated charge pump biases the NMOS switch in order to achieve a minimum switch ON resistance (rON). The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
