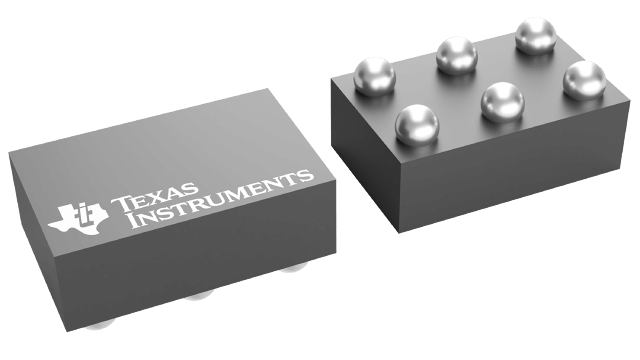

TPS22921YZTR


YeeHing #: Y012-TPS22921YZTR
Inventory: 2800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS22921YZTR Texas Instruments - Yeehing Electronics

3.6-V, 2-A, 14-mΩ, 35-nA leakage load switch

Pricing (USD)

Quantity Unit Price
1 — 99 0.694
100 — 249 0.534
250 — 999 0.393
1,000 + 0.16

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Switch ICs - Power Distribution
RoHS Y
Number of Outputs 1 Output
Current Limit 2 A
On Resistance - Max 14 mOhms
Operating Supply Voltage 750 mV to 3.6 V
Supply Voltage - Min 0.75 V
Supply Voltage - Max 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case DSBGA-6
Series TPS22921
Packaging Reel
Brand Texas Instruments
Development Kit TPS22921EVM
Product Type Power Switch ICs - Power Distribution
Factory Pack Quantity 3000
Subcategory Switch ICs
Unit Weight 0.000060 oz

For more information, please refer to datasheet

Documents

TPS22921YZTR Datasheet

More Information

TPS22921, TPS22922, and TPS22922B are small, low rON load switches with controlled turnon. The TPS22921/2/2B contains a P-channel MOSFET that can operate over an input voltage range of 0.9 V to 3.6 V. The switch is controlled by an on/off input (ON), which can interface directly with low-voltage control signals. In TPS22922 and in TPS22922B, a 65-Ω on-chip load resistor is added for output quick discharge when the switch is turned off. The rise time (slew rate) of the device is internally controlled in order to avoid inrush current: TPS22921 and TPS22922 feature a 30-µs rise time, whereas TPS22922B is 200 µs.
