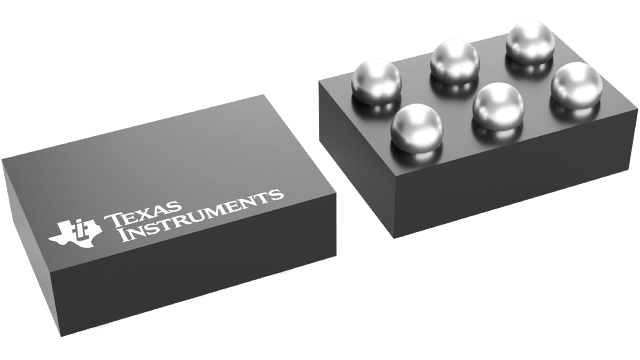

TPS22922BYFPR Texas Instruments - Yeehing Electronics

3.6-V, 2-A, 14-mΩ, 35-nA leakage load switch with output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.694
100 — 249	0.534
250 — 999	0.393
1,000 +	0.20

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Number of Outputs	1 Output
Current Limit	2 A
On Resistance - Max	170 mOhms
Operating Supply Voltage	900 mV to 3.6 V
Supply Voltage - Min	0.9 V
Supply Voltage - Max	3.6 V
Pd - Power Dissipation	645 mW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-6
On Time - Max	799 us
Off Time - Max	807 us
Series	TPS22922B
Packaging	Reel
Brand	Texas Instruments
Development Kit	TPS22922BEVM
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000060 oz

For more information, please refer to datasheet

Documents

TPS22922BYFPR Datasheet

More Information

TPS22921, TPS22922, and TPS22922B are small, low rON load switches with controlled turnon. The TPS22921/2/2B contains a P-channel MOSFET that can operate over an input voltage range of 0.9 V to 3.6 V. The switch is controlled by an on/off input (ON), which can interface directly with low-voltage control signals. In TPS22922 and in TPS22922B, a 65-Ω on-chip load resistor is added for output quick discharge when the switch is turned off. The rise time (slew rate) of the device is internally controlled in order to avoid inrush current: TPS22921 and TPS22922 feature a 30-µs rise time, whereas TPS22922B is 200 µs.
