TPS22924CYZPRB Texas Instruments - Yeehing Electronics

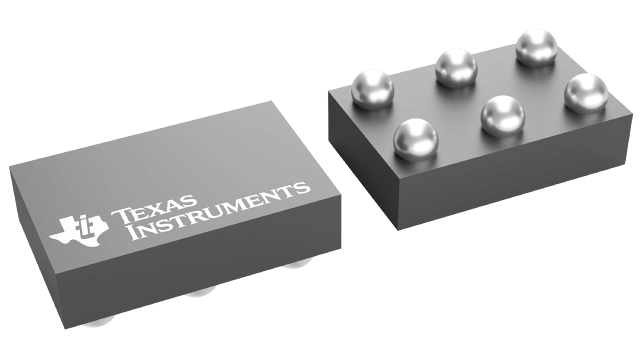

3.6-V, 2-A, 18.3-mΩ load switch with output discharge and rise time of 800-µs at 3.6-V

Pricing (USD)

Quantity	Unit Price
1 — 99	0.529
100 — 249	0.407
250 — 999	0.299
1,000 +	0.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Current Limit	2 A
On Resistance - Max	18.3 mOhms
Operating Supply Voltage	750 mV to 3.6 V
Supply Voltage - Max	3.6 V
Pd - Power Dissipation	810.63 mW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-6
On Time - Max	800 us
Off Time - Max	3 us
Series	TPS22924C
Packaging	Reel
Product	Load Switches
Brand	Texas Instruments
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000060 oz

For more information, please refer to datasheet

Documents

TPS22924CYZPRB Datasheet

More Information

The TPS22924x is a small, low RON load switch with controlled turn on. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V. An integrated charge pump biases the NMOS switch to achieve a minimum switch ON resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
