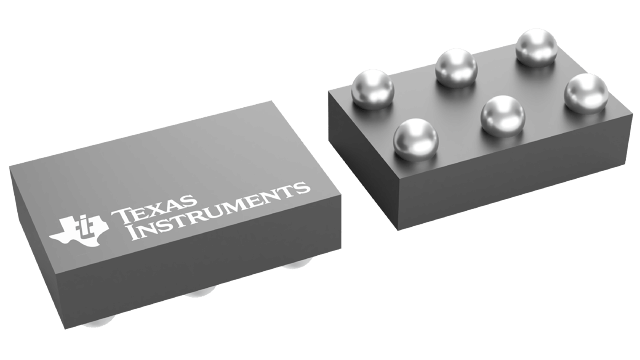

TPS22924DYZPR Texas Instruments - Yeehing Electronics
3.6-V, 2-A, 18.3-mΩ load switch with output discharge and rise time of 6200-µs at 3.6-V
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.529 |
100 — 249 | 0.407 |
250 — 999 | 0.299 |
1,000 + | 0.15 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TPS22924DYZPR Datasheet |
More Information
The TPS22924D is a small, low RON load switch with controlled turn on. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V. An integrated charge pump biases the NMOS switch to achieve a minimum switch ON resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.
