Texas Instruments
TPS22925BYPHR
TPS22925BYPHR
Regular price
$0.12 USD
Regular price
Sale price
$0.12 USD
Unit price
per
Couldn't load pickup availability

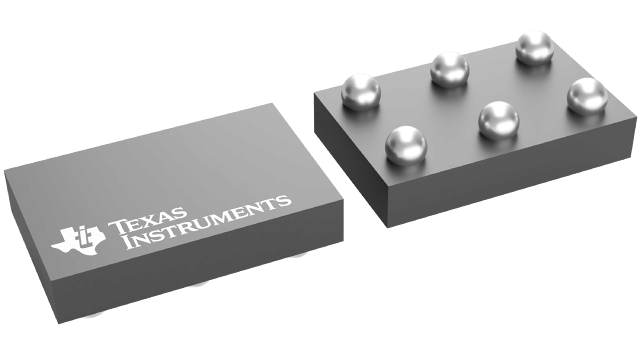

TPS22925BYPHR Texas Instruments - Yeehing Electronics
3.6-V, 3-A, 9.2-mΩ load switch with output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.497 |
| 100 — 249 | 0.337 |
| 250 — 999 | 0.26 |
| 1,000 + | 0.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Current Limit | 3 A |
| On Resistance - Max | 9 mOhms |
| Operating Supply Voltage | 650 mV to 3.6 V |
| Supply Voltage - Min | 650 mV |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| On Time - Max | 110 us |
| Off Time - Max | 3 us |
| Series | TPS22925 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| TPS22925BYPHR Datasheet |
More Information
The TPS22925 product family consists of four devices: TPS22925B, TPS22925BN, TPS22925C, and TPS22925CN. Each device is a 9-mΩ, single-channel load switch with a controlled slew rate.
