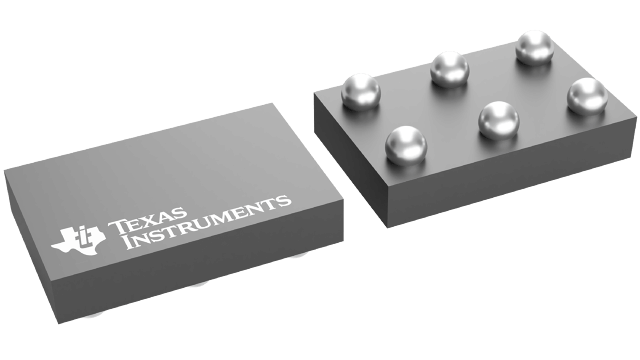

TPS22925CNYPHT


YeeHing #: Y012-TPS22925CNYPHT
Inventory: 6800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS22925CNYPHT Texas Instruments - Yeehing Electronics

3.6-V, 3-A, 9.2-mΩ load switch with output discharge

Pricing (USD)

Quantity Unit Price
1 — 99 0.921
100 — 249 0.709
250 — 999 0.522
1,000 + 0.22

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Switch ICs - Power Distribution
RoHS Y
Type High Side
Number of Outputs 1 Output
Output Current 3 A
Current Limit 3 A
On Resistance - Max 9 mOhms
Operating Supply Voltage 650 mV to 3.6 V
Supply Voltage - Min 650 mV
Supply Voltage - Max 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Mounting Style SMD/SMT
Package / Case DSBGA-6
On Time - Max 900 us
Off Time - Max 10.9 us
Series TPS22925
Packaging Reel
Product Load Switches
Brand Texas Instruments
Product Type Power Switch ICs - Power Distribution
Factory Pack Quantity 250
Subcategory Switch ICs
Unit Weight 0.000060 oz

For more information, please refer to datasheet

Documents

TPS22925CNYPHT Datasheet

More Information

The TPS22925 product family consists of four devices: TPS22925B, TPS22925BN, TPS22925C, and TPS22925CN. Each device is a 9-mΩ, single-channel load switch with a controlled slew rate.
