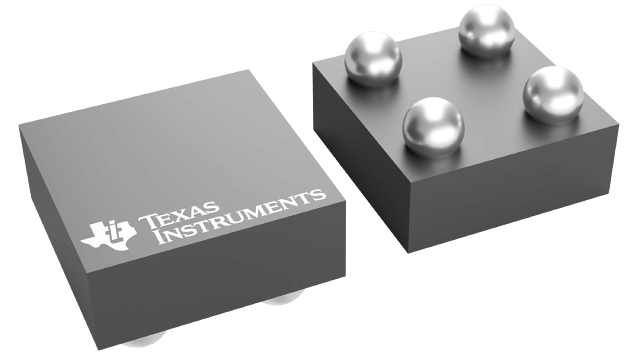

TPS22930AYZVR Texas Instruments - Yeehing Electronics

5.5-V, 2-A, 35-mΩ load switch

Pricing (USD)

Quantity	Unit Price
1 — 99	0.45
100 — 249	0.346
250 — 999	0.255
1,000 +	0.13

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Number of Outputs	1 Output
Current Limit	2 A
On Resistance - Max	49 mOhms
Operating Supply Voltage	1.4 V to 5.5 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-4
On Time - Max	4.8 us
Off Time - Max	6.3 us
Series	TPS22930A
Packaging	Reel
Brand	Texas Instruments
Development Kit	TPS22930AEVM-027
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000035 oz

For more information, please refer to datasheet

Documents

TPS22930AYZVR Datasheet

More Information

The TPS22930 is a small, low RON load switch with controlled turn on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 V to 5.5 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22930 is active high enable.
