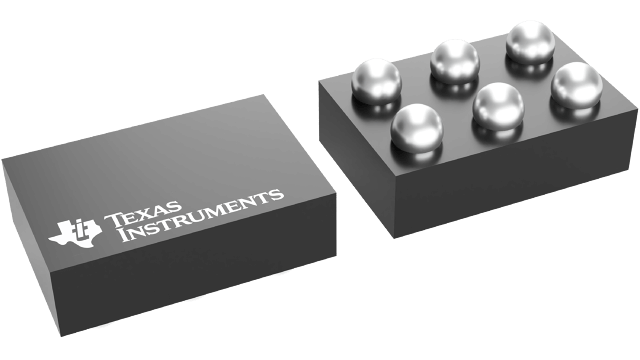

TPS22932BYFPT Texas Instruments - Yeehing Electronics

3.6-V, 0.5-A, 55-mΩ, 80nA leakage load switch with output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.632
100 — 249	0.486
250 — 999	0.358
1,000 +	0.18

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Number of Outputs	1 Output
Current Limit	500 mA
On Resistance - Max	90 mOhms
Operating Supply Voltage	1.1 V to 3.6 V
Supply Voltage - Min	1.1 V
Supply Voltage - Max	3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-6
On Time - Max	450 us
Off Time - Max	160 us
Series	TPS22932B
Packaging	Reel
Brand	Texas Instruments
Development Kit	TPS22932BEVM
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	250
Subcategory	Switch ICs
Unit Weight	0.000060 oz

For more information, please refer to datasheet

Documents

TPS22932BYFPT Datasheet

More Information

The TPS22932B device is a low rON load switch with controlled turnon. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.1 V to 3.6 V.
