Texas Instruments

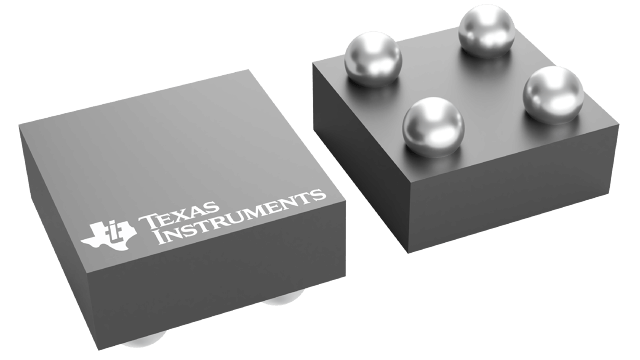

TPS22934YZVR
TPS22934YZVR
Regular price
$0.13 USD
Regular price
Sale price
$0.13 USD
Unit price
per
Couldn't load pickup availability
TPS22934YZVR Texas Instruments - Yeehing Electronics
3.6-V, 1-A, 63-mΩ load switch with output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.474 |
| 100 — 249 | 0.365 |
| 250 — 999 | 0.269 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Output Current | 1 A |
| Current Limit | 1 A |
| On Resistance - Max | 115 mOhms |
| Operating Supply Voltage | 1.5 V to 3.6 V |
| Supply Voltage - Min | 1.5 V |
| Supply Voltage - Max | 3.6 V |
| Pd - Power Dissipation | 829.04 mW |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| Series | TPS22934 |
| Packaging | Reel |
| Product | Power Switches |
| Brand | Texas Instruments |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000282 oz |
For more information, please refer to datasheet
Documents
| TPS22934YZVR Datasheet |
More Information
The TPS22934 is a small, low ON-resistance (rON) load switch with controlled turnon. The devices contain a P-channel MOSFETs that can operate over an input voltage range of 1.5 V to 3.6 V.
