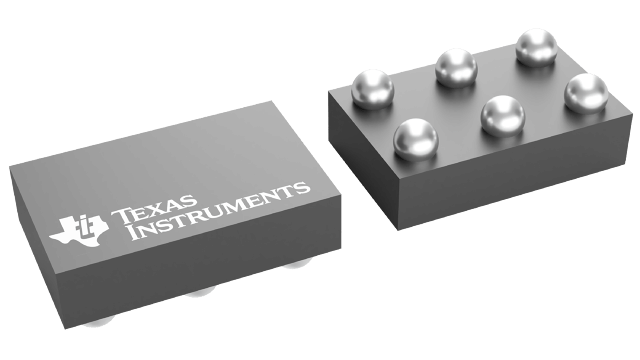

TPS22946YZPR Texas Instruments - Yeehing Electronics
5.5-V, 0.15-A, 400-mΩ load switch with selectable current limit
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.793 |
100 — 249 | 0.655 |
250 — 999 | 0.47 |
1,000 + | 0.20 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Power Switch ICs - Power Distribution |
RoHS | Y |
Number of Outputs | 1 Output |
Current Limit | 235 mA |
On Resistance - Max | 300 mOhms |
Operating Supply Voltage | 1.62 V to 5.5 V |
Supply Voltage - Min | 1.62 V |
Supply Voltage - Max | 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-6 |
On Time - Max | 125 us |
Off Time - Max | 115 us |
Series | TPS22946 |
Packaging | Reel |
Brand | Texas Instruments |
Development Kit | TPS22946EVM-499 |
Product Type | Power Switch ICs - Power Distribution |
Factory Pack Quantity | 3000 |
Subcategory | Switch ICs |
Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
TPS22946YZPR Datasheet |
More Information
The TPS22946 is an ultralow power load switch that provides protection to systems and loads in high-current conditions. The device contains a 300-mΩ current-limited P-channel MOSFET that can operate over an input voltage range of 1.62 V to 5.5 V. The switch is controlled by an on/off input (ON), which can interface directly with low-voltage control signals. The TPS22946 includes thermal shutdown protection that prevents damage to the device when a continuous over-current condition causes excessive heating by turning off the switch.
