Texas Instruments
TPS22953DSQR
TPS22953DSQR
Regular price
$0.16 USD
Regular price
Sale price
$0.16 USD
Unit price
per
Couldn't load pickup availability

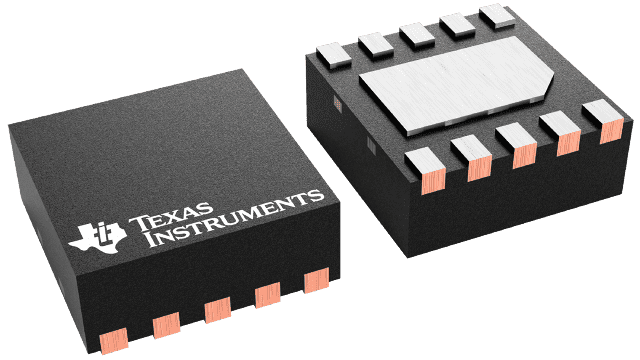

TPS22953DSQR Texas Instruments - Yeehing Electronics
5.7-V, 5-A, 14-mΩ load switch with adj. rise time, -Voltage monitoring
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.724 |
| 100 — 249 | 0.557 |
| 250 — 999 | 0.41 |
| 1,000 + | 0.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Current Limit | 5 A |
| On Resistance - Max | 24 mOhms |
| Operating Supply Voltage | 700 mV to 5.7 V |
| Supply Voltage - Min | 700 mV |
| Supply Voltage - Max | 5.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| On Time - Max | 1.265 ms |
| Off Time - Max | 6 us |
| Series | TPS22953 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000377 oz |
For more information, please refer to datasheet
Documents
| TPS22953DSQR Datasheet |
More Information
The TPS22953/54 are small, single channel load switches with controlled turn on. The devices contain a N-channel MOSFET that can operate over an input voltage range of 0.7 V to 5.7 V and can support a maximum continuous current of 5 A.
