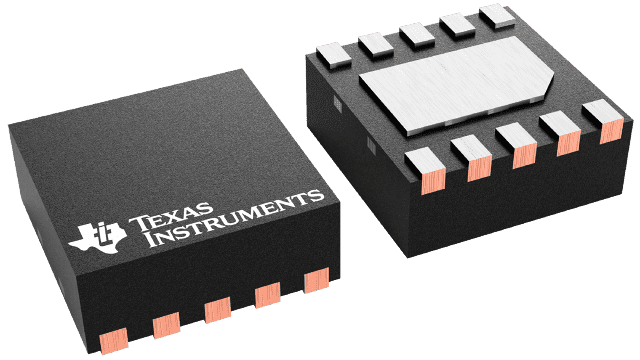

TPS22954DSQR Texas Instruments - Yeehing Electronics

5.7-V, 5-A, 14-mΩ load switch with adj. rise time, -Voltage monitoring and output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.724
100 — 249	0.557
250 — 999	0.41
1,000 +	0.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	5 A
Current Limit	5 A
On Resistance - Max	14 mOhms
Operating Supply Voltage	700 mV to 5.7 V
Supply Voltage - Min	700 mV
Supply Voltage - Max	5.7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT
Package / Case	WSON-10
On Time - Max	1265 us
Off Time - Max	6 us
Series	TPS22954
Packaging	Reel
Product	Load Switches
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000377 oz

For more information, please refer to datasheet

Documents

TPS22954DSQR Datasheet

More Information

The TPS22953/54 are small, single channel load switches with controlled turn on. The devices contain a N-channel MOSFET that can operate over an input voltage range of 0.7 V to 5.7 V and can support a maximum continuous current of 5 A.
