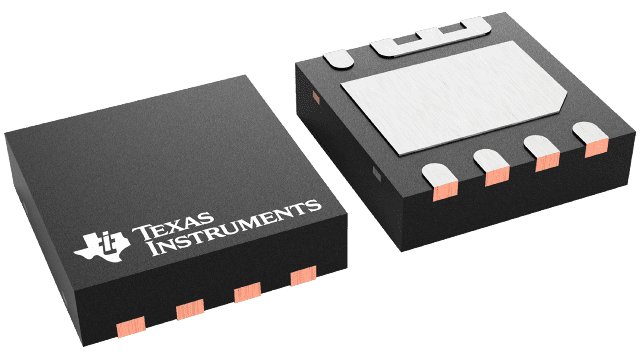

TPS22959DNYR Texas Instruments - Yeehing Electronics
5.5-V, 15-A, 4.4-mΩ load switch with output discharge
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.223 |
100 — 249 | 1.01 |
250 — 999 | 0.726 |
1,000 + | 0.44 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Power Switch ICs - Power Distribution |
RoHS | Y |
Type | High Side |
Number of Outputs | 1 Output |
Output Current | 15 A |
Current Limit | 15 A |
On Resistance - Max | 4.4 mOhms |
Operating Supply Voltage | 5.5 V |
Supply Voltage - Min | 2.5 V |
Supply Voltage - Max | 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WSON-8 |
On Time - Max | 2397 us |
Off Time - Max | 4 us |
Series | TPS22959 |
Packaging | Reel |
Product | Load Switches |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Power Switch ICs - Power Distribution |
Factory Pack Quantity | 3000 |
Subcategory | Switch ICs |
Unit Weight | 0.000917 oz |
For more information, please refer to datasheet
Documents
TPS22959DNYR Datasheet |
More Information
The TPS22959 is a small, ultra-low RON, single channel load switch with controlled turn on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.5 V and supports a maximum continuous current of 15 A.
