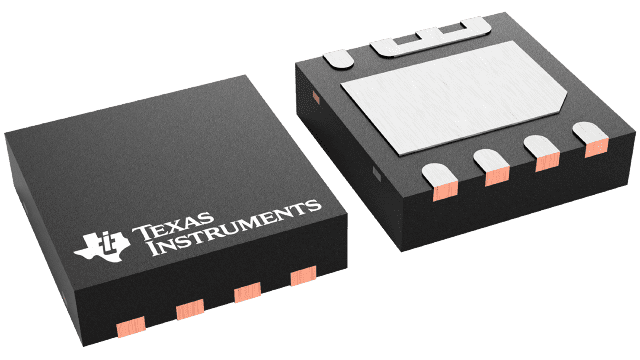

TPS22959DNYT Texas Instruments - Yeehing Electronics

5.5-V, 15-A, 4.4-mΩ load switch with output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	1.467
100 — 249	1.212
250 — 999	0.87
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	15 A
Current Limit	15 A
On Resistance - Max	4.4 mOhms
Operating Supply Voltage	5.5 V
Supply Voltage - Min	2.5 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WSON-8
On Time - Max	2397 us
Off Time - Max	4 us
Series	TPS22959
Packaging	Reel
Product	Load Switches
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	250
Subcategory	Switch ICs
Unit Weight	0.000917 oz

For more information, please refer to datasheet

Documents

TPS22959DNYT Datasheet

More Information

The TPS22959 is a small, ultra-low RON, single channel load switch with controlled turn on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.5 V and supports a maximum continuous current of 15 A.
