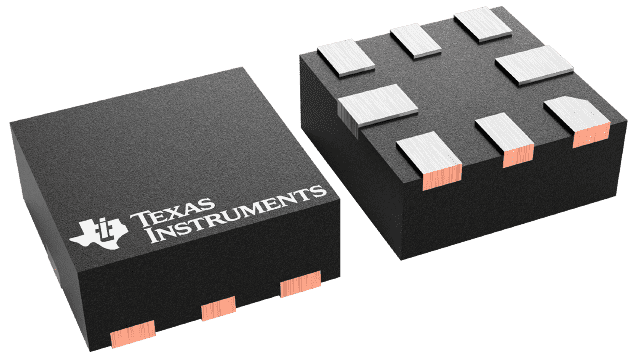

TPS22960RSER Texas Instruments - Yeehing Electronics
2-ch, 5.5-V, 0.5-A, 435-mΩ load switch with output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.699 |
| 100 — 249 | 0.538 |
| 250 — 999 | 0.396 |
| 1,000 + | 0.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 2 Output |
| Output Current | 500 mA |
| Current Limit | 500 mA |
| On Resistance - Max | 737 mOhms |
| Operating Supply Voltage | 1.62 V to 5.5 V |
| Supply Voltage - Min | 1.62 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-8 |
| On Time - Max | 635 us |
| Off Time - Max | 4.5 us |
| Series | TPS22960 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000141 oz |
For more information, please refer to datasheet
Documents
| TPS22960RSER Datasheet |
More Information
The TPS22960 is a small low-rON dual-channel load switch with controlled turnon. The devices contain two P-channel MOSFETs that can operate over an input voltage range of 1.62 V to 5.5 V. Each switch is independently controlled by on/off inputs (ON1 and ON2), which are capable of interfacing directly with low-voltage control signals. In TPS22960 a 85-Ω on-chip load resistor is added for quick discharge when the switch is turned off.
