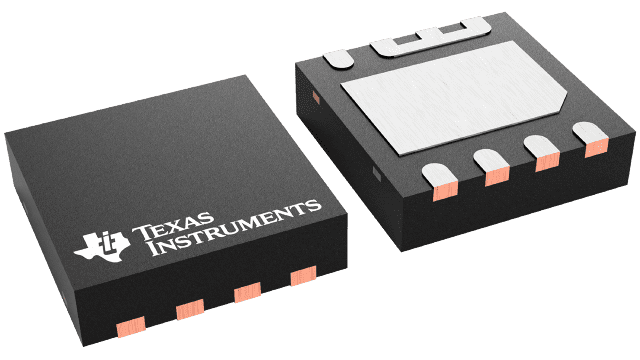

TPS22961DNYR


YeeHing #: Y012-TPS22961DNYR
Inventory: 7000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS22961DNYR Texas Instruments - Yeehing Electronics

3.5-V, 6-A, 7mΩ load switch with output discharge

Pricing (USD)

Quantity Unit Price
1 — 99 1.407
100 — 249 1.162
250 — 999 0.835
1,000 + 0.50

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Switch ICs - Power Distribution
RoHS Y
Type High Side
Number of Outputs 1 Output
Output Current 6 A
Current Limit 6 A
On Resistance - Max 4.4 mOhms
Operating Supply Voltage 3.5 V
Supply Voltage - Min 800 mV
Supply Voltage - Max 3.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case WSON-8
On Time - Max 10 us
Off Time - Max 3.5 us
Series TPS22961
Packaging Reel
Product Load Switches
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Power Switch ICs - Power Distribution
Factory Pack Quantity 3000
Subcategory Switch ICs
Unit Weight 0.000917 oz

For more information, please refer to datasheet

Documents

TPS22961DNYR Datasheet

More Information

The TPS22961 is a small, ultra-low RON, single channel load switch with controlled turn on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 3.5 V and supports a maximum continuous current of 6 A.
