Texas Instruments
TPS22962DNYR
TPS22962DNYR
Regular price
$0.42 USD
Regular price
Sale price
$0.42 USD
Unit price
per
Couldn't load pickup availability

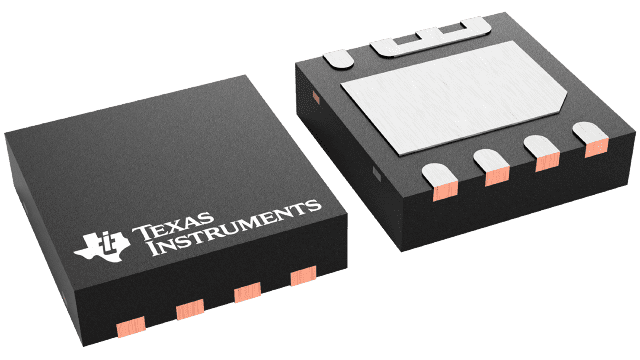

TPS22962DNYR Texas Instruments - Yeehing Electronics
5.5-V, 10-A, 4.4-mΩ load switch with output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.165 |
| 100 — 249 | 0.962 |
| 250 — 999 | 0.691 |
| 1,000 + | 0.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Output Current | 10 A |
| Current Limit | 10 A |
| On Resistance - Max | 4.4 mOhms |
| Operating Supply Voltage | 5.5 V |
| Supply Voltage - Min | 800 mV |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| On Time - Max | 2397 us |
| Off Time - Max | 4 us |
| Series | TPS22962 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000917 oz |
For more information, please refer to datasheet
Documents
| TPS22962DNYR Datasheet |
More Information
The TPS22962 is a small, ultra-low RON, single channel load switch with controlled turn on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.5 V and supports a maximum continuous current of 10 A.
