TPS22963CYZPT
TPS22963CYZPT
Regular price
$0.24 USD
Regular price
Sale price
$0.24 USD
Unit price
per
Couldn't load pickup availability

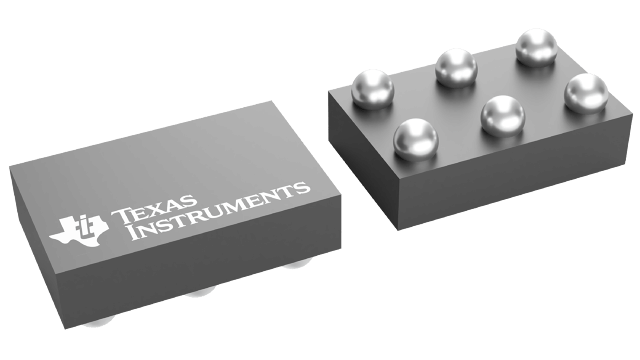

TPS22963CYZPT Texas Instruments - Yeehing Electronics
5.5-V, 3-A, 14-mΩ load switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.739 |
| 100 — 249 | 0.568 |
| 250 — 999 | 0.418 |
| 1,000 + | 0.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Current Limit | 3 A |
| On Resistance - Max | 18 mOhms |
| Operating Supply Voltage | 1 V to 5.5 V |
| Supply Voltage - Min | 1 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| On Time - Max | 928 us |
| Off Time - Max | 3.5 us |
| Series | TPS22963C |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 250 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000046 oz |
For more information, please refer to datasheet
Documents
| TPS22963CYZPT Datasheet |
More Information
