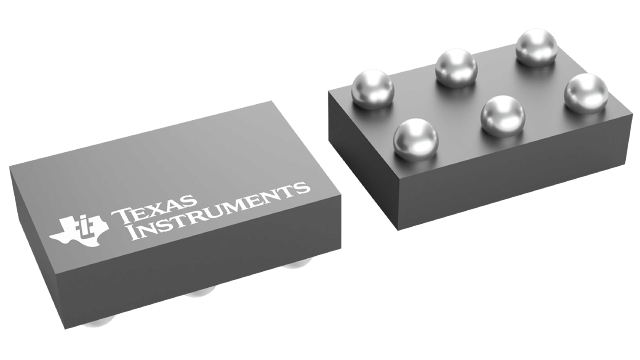

TPS22964CYZPR Texas Instruments - Yeehing Electronics

5.5-V, 3-A, 14-mΩ load switch with output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.568
100 — 249	0.437
250 — 999	0.322
1,000 +	0.16

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	3 A
Current Limit	3 A
On Resistance - Max	60 mOhms
Operating Supply Voltage	5.5 V
Supply Voltage - Min	1 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-6
On Time - Max	928 us
Off Time - Max	2.5 us
Series	TPS22964C
Packaging	Reel
Product	Load Switches
Brand	Texas Instruments
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000060 oz

For more information, please refer to datasheet

Documents

TPS22964CYZPR Datasheet

More Information

The TPS22963/64 is a small, ultra-low RON load switch with controlled turn on. The device contains a low RDSON N-Channel MOSFET that can operate over an input voltage range of 1 V to 5.5 V and switch currents of up to 3 A. An integrated charge pump biases the NMOS switch in order to achieve a low switch ON-Resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage GPIO control signals. The rise time of the TPS22963/64 device is internally controlled in order to avoid inrush current.
